E70 AC

No Oil. Not the only thing to worry less about.

Dry-type resonating capacitors for 50/60Hz induction furnace equipment.

Please send your enquiry

产品数据库

在 "具体零件号 "栏中输入一个完整或部分的已知项目编号,然后开始搜索。 或者,你可以根据第2行的技术标准开始进行一般或预过滤的搜索。
请注意,由于技术原因,我们的数据库每天只能更新一次。因此,关于库存水平的信息应被视为以临时销售为准。

DESCRIPTION OF PRODUCT

Self-healing capacitors for your induction systems, without the risk of leakage

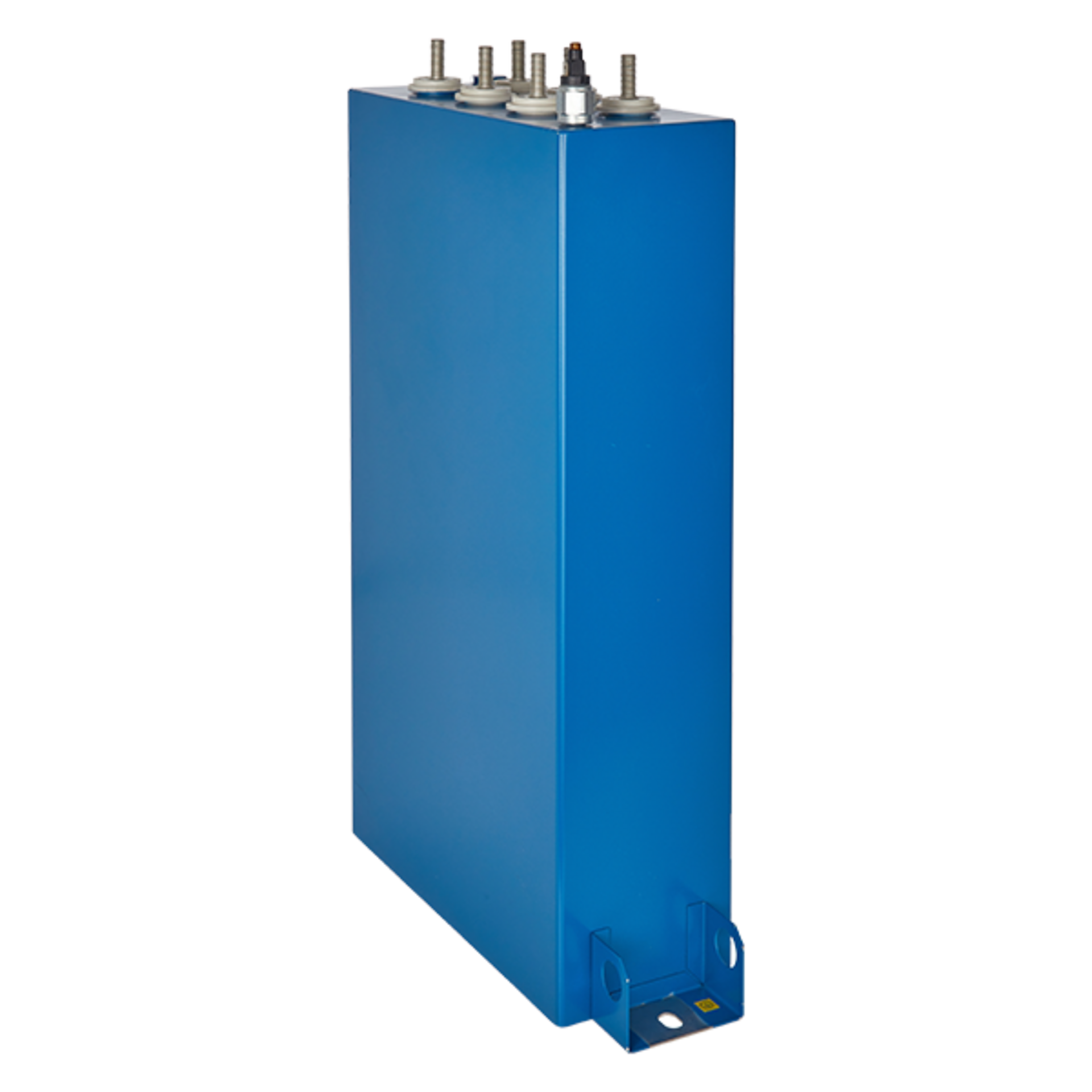

The custom-tailored capacitors of our E70 series are used mainly for the compensation of reactive power or as resonance capacitors in induction furnaces with operating frequencies of 50 or 60 Hz.

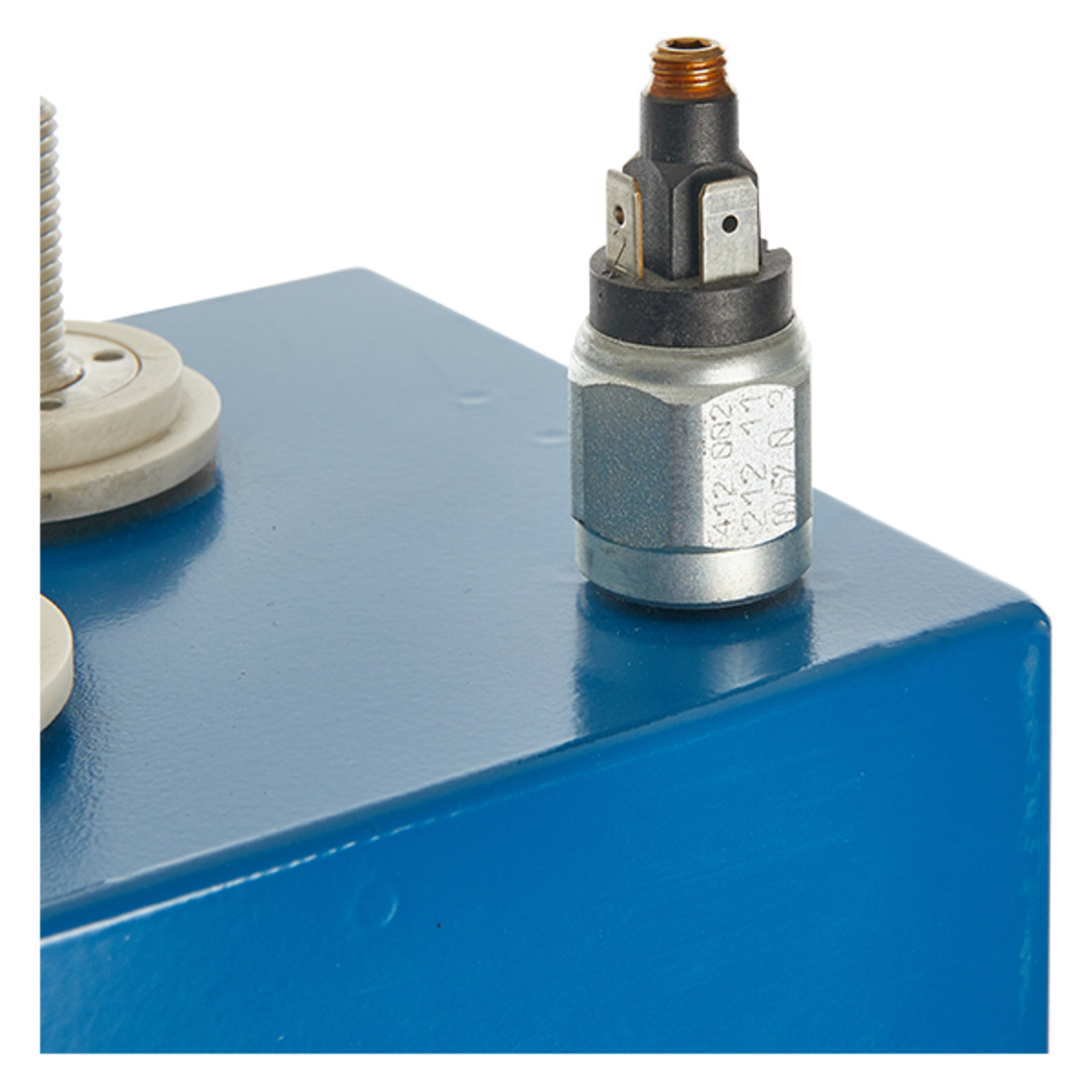

Stable round winding elements are interconnected in a hermetically sealed metal housing which is filled with solid resin. Unlike conventional ALLFILM capacitors, the capacitor elements of our E70 are made of metallized, self-healing film. In the event of a dielectric breakdown, the capacitance remains practically unchanged and the probability of a total failure of the entire capacitor is drastically reduced. The entire system is also protected by a pressure monitor, similar to the protection of our capacitors in the E59 and E90 series.

Available as customer-specific solutions in the voltage range up to 2.8 kV rms, with a reactive power of up to 500 kvar per unit.
