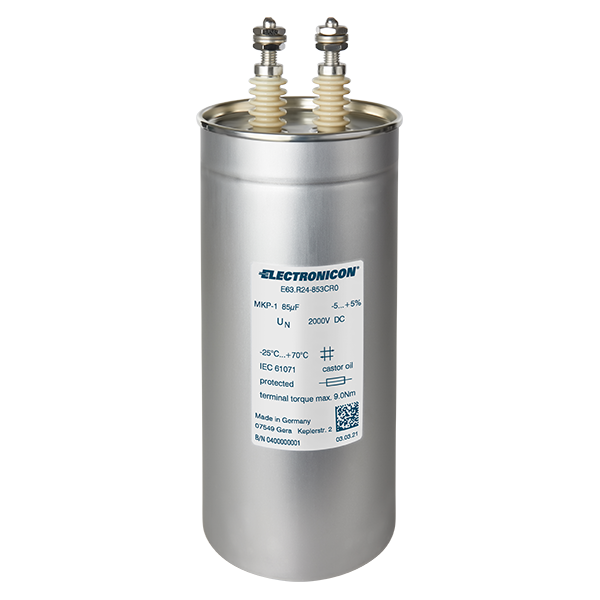

E63

DC capacitors with integrated safety device

Long life, safe failure mode. Our E63s are pure DC capacitors with high capacitance density and an autonomous break action mechanism (BAM).

Please send your enquiry

产品数据库

在 "具体零件号 "栏中输入一个完整或部分的已知项目编号,然后开始搜索。 或者,你可以根据第2行的技术标准开始进行一般或预过滤的搜索。
请注意,由于技术原因,我们的数据库每天只能更新一次。因此,关于库存水平的信息应被视为以临时销售为准。

DC capacitors with autonomous safety mechanism

The special kind of films and coating patterns used in our oil-filled E63-capacitors give them a high specific ratio of capacitance to volume and makes them extremely overvoltage proof.

Very good self-healing characteristics and the integrated autonomous overpressure protection ("BAM") ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life. Hence the E63s are interesting particularly for applications with high AC ripple currents, e.g. as smoothing or supporting capacitors in buffer storage circuits, and in sensitive environment with high safety requirements.

Note that the presence of an overpressure mechanism adds substantially to the self-inductance of the capacitor, and limits the surge current rating. If self-inductance and surge current are important issues, then our ranges E50, E51, E60, E61, E66, E67, E53 or E55 may be considered as a more adequate option.
