E93 DSC™

Surge Protection Capacitors in Dry Technology

They are as different as they look: instead of the conventional oil, we fill solid resin into our surge capacitors.

Please send your enquiry

Product data base

Enter a known article number, in full or in parts, in the field "Specific part number" and start your search. Alternatively, you can search by general or pre-filtered technical criteria in line 2.
Please note that, for technical reasons, our database can only be updated once a day. Therefore, the information about our stock quantities needs to be confirmed by our sales teams. Occasionally it may happen that the goods have been sold in the meantime.

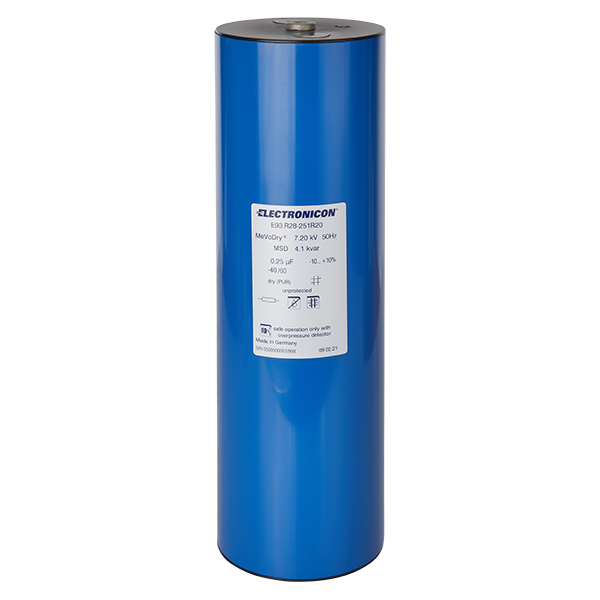

Who said it has to look like a surge capacitor?

They look different, and as a matter of fact, they are.

Surge protection capacitors are designed to protect high voltage motors and transformers from events with high transient overvoltages (e.g. lightning or switching surges). Keeping with our tradition of completely dry products, we have designed the first MV Surge Capacitor in self-healing technology: DSC™

In combination with the PD-free layout, the self-healing dielectric provides for extremely long operating life and highest operational safety. Unlike traditional oil-filled ALLFILM-capacitors which are bound to fail as soon as overvoltage or other stress factors have provoked a dielectric breakdown, the self-healing dielectric of DSC™ insulates the breakdown spot immediately and continues operation as usual.

Thanks to the solid polyurethane filling, the DSC™ can be installed in any mounting position: there are no liquids to threaten the environment or to be considered during disposal at the end of operational life.

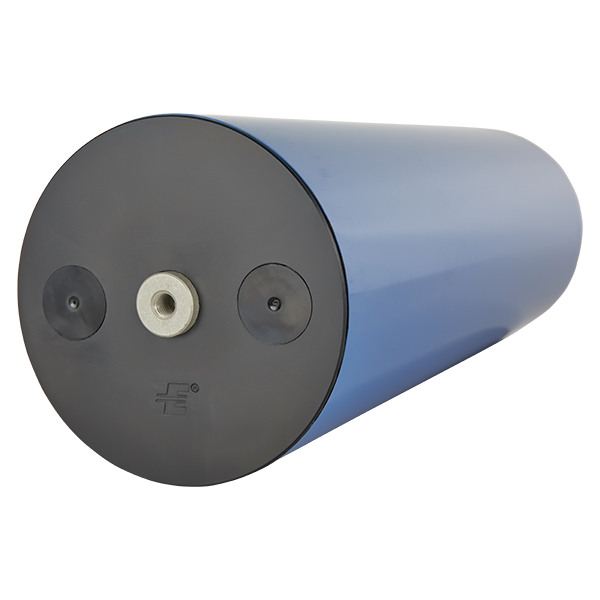

With their uncomplicated terminals and the plastic housing, our surge capacitors do not only have a completely different optical appearance than ALLFILM capacitors, but also offer substantial savings in weight, space and cost.

The Utility model of this capacitor has been registered with German Patent and Trade Mark Office (DPMA) under file no. 20 2010 009 760.6.
